La prima di una nuova era del marchio Made in Britain, acquisito e rilanciato da TVS Motor Company.
MANX R: POWERTRAIN & CHASSIS
ENGINE
Type: Norton 72-degree liquid-cooled V4, 1200cc. Chain-driven cams with idler gear for reduced engine height. Titanium inlet valves.
Bore & stroke: 82mm x 56.8mm
Compression ratio: 14:1
Fuel injection: Multi-point sequential fuel injection system with 8 injectors, ride-by-wire throttle with independent input on front and rear cylinder banks for ultimate control and feel.
PERFORMANCE
Max Power: 206 HP / 153.6 kW @ 11,500 rpm
Max Torque: 130 Nm / 96 ft-lb @ 9,000 rpm
EXHAUST
Underslung 4-2-1 steel exhaust system with two catalytic converters and three lambda probes.
TRANSMISSION
Gearbox: 6-speed with bi-directional up/down Quick Shift
Clutch: Cable-operated Assist & Slip multiplate wet clutch
Primary drive: Straight cut gears; Ratio: 1.66:1
Final drive: X-ring 525 Chain; Front sprocket 17; Rear sprocket 41
Gear ratios: 1st: 39/15, 2nd: 33/16, 3rd: 34/20, 4th: 31/21, 5th: 31/23, 6th: 34/27
CHASSIS
Frame: Die-cast aluminium
Swingarm: Single-side die-cast aluminium
Seat: Two-seat configuration (rider and pillion)
SUSPENSION
Front Suspension: Marzocchi 45mm USD chromed inner tubes, 120mm travel, full manual adjustment, passive damping
Rear Suspension: Marzocchi monoshock RSU, 126mm travel, full manual adjustment, passive damping
Steering Damper: Adjustable
BRAKES
Front Brakes: 2x 320mm semi-floating discs, radially mounted Brembo Hypure 4-piston calipers with Bosch Cornering ABS EVO
Rear Brake: 245mm disc, 2-piston caliper with Bosch Cornering ABS EVO
WHEELS & TYRES
Front Wheel: Cast aluminium, 17” x 3.50”
Front Tyre: Pirelli Diablo Supercorsa SP-V4 120/70 ZR17
Rear Wheel: Cast aluminium, 17” x 6.00”
Rear Tyre: Pirelli Diablo Supercorsa SP-V4 200/55 ZR17
DIMENSIONS
Wet weight, no fuel: 210kg / 463lbs..
Fuel tank capacity: 14.5 litres / 3.2 Gallons (Imperial) / 3.8 Gallons (US)
Seat height: 840 mm
Ground clearance: 133 mm
Wheelbase: 1435 mm
Rake: 24.1 º
Trail: 94.5 mm (3.72 in)
SERVICE & WARRANTY
Service interval: 12 months / 10,000 miles / 16,000 kilometres
Warranty: 36 months / 30,000 miles / 50,000 kilometres
CONSUMPTION & EMISSIONS
Fuel consumption: 15.6 kmpL / 44 MPG (Imperial) / 36.7 MPG (US)
Emissions / CO2: EURO5+, Bharat Stage VI (California & US)
MANX R: FEATURES
DESIGN:
Forged aluminium componentry: brake & clutch levers, footrests & pedals
LIGHTING:

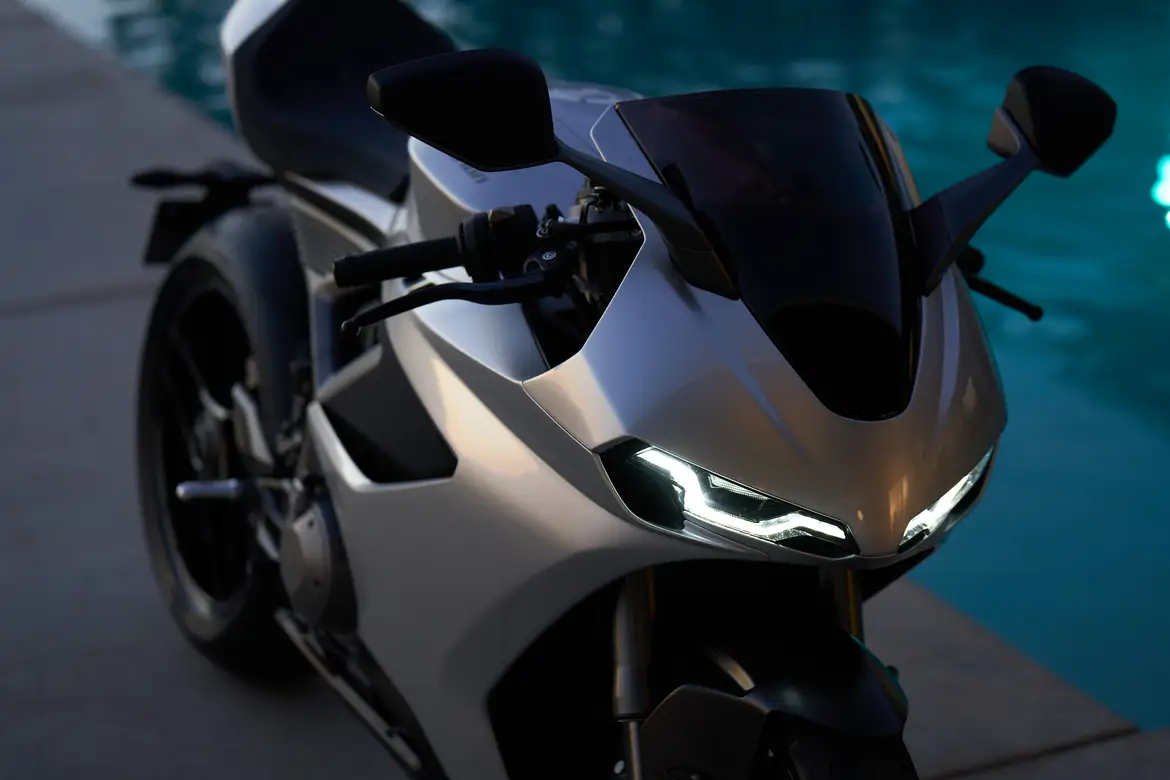

Twin LED headlights with signature DRL (Daytime Running Lights)
[Global spec] Headlight-integrated LED front indicators
[US spec] Mirror-integrated LED front indicators
Swingarm mounted LED rear indicators
INSTRUMENTS:
Full-colour 8” touchscreen TFT display, 1280x720 px resolution
Multi-way connectivity (Bluetooth & Wi-Fi)
Multimedia control (music & calls)
Navigation control
Go Pro control
Over-the-air software (S-OTA) & firmware (F-OTA) updates
Ride telematics
Norton Rider app integration
ELECTRONICS:
Keyless ignition with electronic steering lock and fuel filler cap
RIDE MODES:
Rain, Road, Sport, Track 1 and Track 2
ELECTRONIC RIDER AIDS:
Bosch 10.3ME 6-axis IMU (Inertial Measurement Unit), including…
N-DTC - Drag Torque Control
N-ABS – Anti-Lock Braking System
N-TEC – Tractive Effort Control
N-DCC – Dynamic Cruise Control
N-TCL – Torque Controlled Launch
N-TWC – Total Wheelie Control
N-RLC – Rear Lift Control
N-RSC - Rear Slide Control
N-VHC – Vehicle Hold Control
N-ECB – Electronic Combined Braking
COLOUR OPTIONS:
Matrix Black
Trophy Silver
Celestial Grey (at cost)
Aqua Green (at cost)
MANX R APEX: POWERTRAIN & CHASSIS
ENGINE
Type: Norton 72-degree liquid-cooled V4, 1200cc. Chain-driven cams with idler gear for reduced engine height. Titanium inlet valves.
Bore & stroke: 82mm x 56.8mm
Compression ratio: 14:1
Fuel injection: Multi-point sequential fuel injection system with 8 injectors, ride-by-wire throttle with independent input on front and rear cylinder banks for ultimate control and feel.
PERFORMANCE
Max Power: 206 HP / 153.6 kW @ 11,500 rpm
Max Torque: 130 Nm / 96 ft-lb @ 9,000 rpm
EXHAUST
Underslung 4-2-1 steel exhaust system with two catalytic converters and three lambda probes.
TRANSMISSION
Gearbox: 6-speed with bi-directional up/down Quick Shift
Clutch: Cable-operated Assist & Slip multiplate wet clutch
Primary drive: Straight cut gears; Ratio: 1.66:1
Final drive: X-ring 525 Chain; Front sprocket 17; Rear sprocket 41
Gear ratios: 1st: 39/15, 2nd: 33/16, 3rd: 34/20, 4th: 31/21, 5th: 31/23, 6th: 34/27
CHASSIS
Frame: Die-cast aluminium
Swingarm: Single-side die-cast aluminium
Seat: Split rider & pillion seat
SUSPENSION
Front Suspension: Marzocchi 45mm USD DLC inner tubes, 120mm travel, full electronic adjustment, semi-active damping
Rear Suspension: Marzocchi monoshock RSU, 126mm travel, full electronic adjustment, semi-active damping
Steering Damper: Adjustable
BRAKES
Front Brakes: 2x 320mm semi-floating discs, radially mounted Brembo Hypure 4-piston calipers with Bosch Cornering ABS EVO
Rear Brake: 245mm disc, 2-piston caliper with Bosch Cornering ABS EVO
WHEELS & TYRES
Front Wheel: OZ Racing forged aluminium, 17” x 3.50”
Front Tyre: Pirelli Diablo Supercorsa SP-V4 120/70 ZR17
Rear Wheel: OZ Racing forged aluminium, 17” x 6.00”
Rear Tyre: Pirelli Diablo Supercorsa SP-V4 200/55 ZR17
DIMENSIONS
Wet weight, no fuel: 207kg / 457 lbs..
Fuel tank capacity: 14.5 litres / 3.2 Gallons (Imperial) / 3.8 Gallons (US)
Seat height: 840 mm
Ground clearance: 133 mm
Wheelbase: 1435 mm
Rake: 24.1 º
Trail: 94.5 mm (3.72 in)
SERVICE & WARRANTY
Service interval: 12 months / 10,000 miles / 16,000 kilometres
Warranty: 36 months / 30,000 miles / 50,000 kilometres
CONSUMPTION & EMISSIONS
Fuel consumption: 15.6 kmpL / 44 MPG (Imperial) / 36.7 MPG (US)
Emissions / CO2: EURO5+, Bharat Stage VI (California & US)
MANX R APEX: FEATURES
DESIGN:
Forged aluminium componentry: brake & clutch levers, footrests & pedals
LIGHTING:
Twin LED headlights with signature DRL (Daytime Running Lights)
[Global spec] Headlight-integrated LED front indicators
[US spec] Mirror-integrated LED front indicators
Swingarm mounted LED rear indicators
INSTRUMENTS:
Full-colour 8” touchscreen TFT display, 1280x720 px resolution
Multi-way connectivity (Bluetooth & Wi-Fi)
Multimedia control (music & calls)
Navigation control
Go Pro control
Over-the-air software (S-OTA) & firmware (F-OTA) updates
Ride telematics
Norton Rider app integration
ELECTRONICS:
Keyless ignition with electronic steering lock and fuel filler cap
RIDE MODES:
Rain, Road, Sport, Track 1 and Track 2
ELECTRONIC RIDER AIDS:
Bosch 10.3ME 6-axis IMU (Inertial Measurement Unit), including…
N-DTC - Drag Torque Control
N-ABS – Anti-Lock Braking System
N-TEC – Tractive Effort Control
N-DCC – Dynamic Cruise Control
N-TCL – Torque Controlled Launch
N-TWC – Total Wheelie Control
N-RLC – Rear Lift Control
N-RSC - Rear Slide Control
N-VHC – Vehicle Hold Control
N-ECB – Electronic Combined Braking
COLOUR OPTIONS:
Matrix Black
Trophy Silver
Celestial Grey
Aqua Green
MANX R SIGNATURE: POWERTRAIN & CHASSIS
ENGINE
Type: Norton 72-degree liquid-cooled V4, 1200cc. Chain-driven cams with idler gear for reduced engine height. Titanium inlet valves.
Bore & stroke: 82mm x 56.8mm
Compression ratio: 14:1
Fuel injection: Multi-point sequential fuel injection system with 8 injectors, ride-by-wire throttle with independent input on front and rear cylinder banks for ultimate control and feel.
PERFORMANCE
Max Power: 206 HP / 153.6 kW @ 11,500 rpm
Max Torque: 130 Nm / 96 ft-lb @ 9,000 rpm
EXHAUST
Underslung 4-2-1 steel exhaust system with two catalytic converters and three lambda probes.
TRANSMISSION
Gearbox: 6-speed with bi-directional up/down Quick Shift
Clutch: Cable-operated Assist & Slip multiplate wet clutch
Primary drive: Straight cut gears; Ratio: 1.66:1
Final drive: X-ring 525 Chain; Front sprocket 17; Rear sprocket 41
Gear ratios: 1st: 39/15, 2nd: 33/16, 3rd: 34/20, 4th: 31/21, 5th: 31/23, 6th: 34/27
CHASSIS
Frame: Die-cast aluminium
Swingarm: Single-side die-cast aluminium
Seat: Single rider seat
SUSPENSION
Front Suspension: Marzocchi 45mm USD DLC inner tubes, 120mm travel, full electronic adjustment, semi-active damping
Rear Suspension: Marzocchi monoshock RSU, 126mm travel, full electronic adjustment, semi-active damping
Steering Damper: Adjustable
BRAKES
Front Brakes: 2x 320mm semi-floating discs, radially mounted Brembo Hypure 4-piston calipers with Bosch Cornering ABS EVO
Rear Brake: 245mm disc, 2-piston caliper with Bosch Cornering ABS EVO
WHEELS & TYRES
Front Wheel: Rotobox Bullet Pro Carbon Fibre 3.50" x 17"
Front Tyre: Pirelli Diablo Supercorsa SP-V4 120/70 ZR17
Rear Wheel: Rotobox Bullet Pro Carbon Fibre 6.00" x 17"
Rear Tyre: Pirelli Diablo Supercorsa SP-V4 200/55 ZR17
DIMENSIONS
Wet weight, no fuel: 203kg / 448 lbs.
Fuel tank capacity: 14.5 litres / 3.2 Gallons (Imperial) / 3.8 Gallons (US)
Seat height: 840 mm
Ground clearance: 133 mm
Wheelbase: 1435 mm
Rake: 24.1 º
Trail: 94.5 mm (3.72 in)
SERVICE & WARRANTY
Service interval: 12 months / 10,000 miles / 16,000 kilometres
Warranty: 36 months / 30,000 miles / 50,000 kilometres
CONSUMPTION & EMISSIONS
Fuel consumption: 15.6 kmpL / 44 MPG (Imperial) / 36.7 MPG (US)
Emissions / CO2: EURO5+, Bharat Stage VI (California & US)
MANX R SIGNATURE: FEATURES
DESIGN:
Full carbon fibre bodywork
Forged aluminium componentry: brake & clutch levers, footrests & pedals
LIGHTING:
Twin LED headlights with signature DRL (Daytime Running Lights)
[Global spec] Headlight-integrated LED front indicators
[US spec] Mirror-integrated LED front indicators
Swingarm mounted LED rear indicators
INSTRUMENTS:
Full-colour 8” touchscreen TFT display, 1280x720 px resolution
Multi-way connectivity (Bluetooth & Wi-Fi)
Multimedia control (music & calls)
Navigation control
Go Pro control
Over-the-air software (S-OTA) & firmware (F-OTA) updates
Ride telematics
Norton Rider app integration
ELECTRONICS:
Keyless ignition with electronic steering lock, seat lock & fuel filler cap
RIDE MODES:
Rain, Road, Sport, Track 1 and Track 2
ELECTRONIC RIDER AIDS:
Bosch 10.3ME 6-axis IMU (Inertial Measurement Unit), including…
N-DTC - Drag Torque Control
N-ABS – Anti-Lock Braking System
N-TEC – Tractive Effort Control
N-DCC – Dynamic Cruise Control
N-TCL – Torque Controlled Launch
N-TWC – Total Wheelie Control
N-RLC – Rear Lift Control
N-RSC - Rear Slide Control
N-VHC – Vehicle Hold Control
N-ECB – Electronic Combined Braking
COLOUR OPTIONS:
Matrix Black
Trophy Silver
Celestial Grey
Aqua Green
Carbon
Glacier Blue (at cost)
MANX R FIRST EDITION: POWERTRAIN & CHASSIS
ENGINE
Type: Norton 72-degree liquid-cooled V4, 1200cc. Chain-driven cams with idler gear for reduced engine height. Titanium inlet valves.
Bore & stroke: 82mm x 56.8mm
Compression ratio: 14:1
Fuel injection: Multi-point sequential fuel injection system with 8 injectors, ride-by-wire throttle with independent input on front and rear cylinder banks for ultimate control and feel.
PERFORMANCE
Max Power: 206 HP / 153.6 kW @ 11,500 rpm
Max Torque: 130 Nm / 96 ft-lb @ 9,000 rpm
EXHAUST
Underslung 4-2-1 Akrapovic titanium exhaust system (road-legal) with two catalytic converters and three lambda probes.
TRANSMISSION
Gearbox: 6-speed with bi-directional up/down Quick Shift
Clutch: Cable-operated Assist & Slip multiplate wet clutch
Primary drive: Straight cut gears; Ratio: 1.66:1
Final drive: X-ring 525 Chain; Front sprocket 17; Rear sprocket 41
Gear ratios: 1st: 39/15, 2nd: 33/16, 3rd: 34/20, 4th: 31/21, 5th: 31/23, 6th: 34/27
CHASSIS
Frame: Die-cast aluminium
Swingarm: Single-sided braced aluminium
Seat: Single rider seat
SUSPENSION
Front Suspension: Marzocchi 45mm USD DLC inner tubes, 120mm travel, full electronic adjustment, semi-active damping
Rear Suspension: Marzocchi monoshock RSU, 126mm travel, full electronic adjustment, semi-active damping
Steering Damper: Adjustable
BRAKES
Front Brakes: 2x 320mm semi-floating discs, radially mounted Brembo Hypure 4-piston callipers with Bosch Cornering ABS EVO
Rear Brake: 245mm disc, 2-piston calliper with Bosch Cornering ABS EVO
WHEELS & TYRES
Front Wheel: Rotobox Bullet Pro Carbon Fibre 3.50" x 17"
Front Tyre: Pirelli Diablo Supercorsa SP-V4 120/70 ZR17
Rear Wheel: Rotobox Bullet Pro Carbon Fibre 6.00" x 17"
Rear Tyre: Pirelli Diablo Supercorsa SP-V4 200/55 ZR17
DIMENSIONS
Wet weight, no fuel: 201kg / 443 lbs.
Fuel tank capacity: 14.5 litres / 3.2 Gallons (Imperial) / 3.8 Gallons (US)
Seat height: 840 mm
Ground clearance: 133 mm
Wheelbase: 1435 mm
Rake: 24.1 º
Trail: 94.5 mm (3.72 in)
SERVICE & WARRANTY
Service interval: 12 months / 10,000 miles / 16,000 kilometres
Warranty: 36 months / 30,000 miles / 50,000 kilometres
CONSUMPTION & EMISSIONS
Fuel consumption: 15.6 kmpL / 44 MPG (Imperial) / 36.7 MPG (US)
Emissions / CO2: EURO5+, Bharat Stage VI (California & US)
MANX R FIRST EDITION: FEATURES
DESIGN:
Full carbon fibre bodywork
Titanium chassis, engine and bodywork fixings
Billet “machined-finish” aluminium componentry: brake & clutch levers, rider foot controls and heel guards, bar-ends, reservoir caps and inspection caps.
First Edition Brembo Hypure coloured calipers
First Edition exclusive numbered top yoke
First Edition ‘union jack’ airbrushed side infill panels
First Edition unique decals
First Edition embroidered quilted leather seat
First Edition exclusive start-up sequence on headlights & dashboard
Choice of unique colourways
Off-bike accessories package
LIGHTING:
Twin LED headlights with signature DRL (Daytime Running Lights)
[Global spec] Headlight-integrated LED front indicators
[US spec] Mirror-integrated LED front indicators
Swingarm mounted LED rear indicators
INSTRUMENTS:
Full-colour 8” touchscreen TFT display, 1280x720 px resolution
Multi-way connectivity (Bluetooth & Wi-Fi)
Multimedia control (music & calls)
Navigation control
Go Pro control
Over-the-air software (S-OTA) & firmware (F-OTA) updates
Ride telematics
Norton Rider app integration
ELECTRONICS:
Keyless ignition with electronic steering lock, seat lock & fuel filler cap
RIDE MODES:
Rain, Road, Sport, Track 1 and Track 2
ELECTRONIC RIDER AIDS:
Bosch 10.3ME 6-axis IMU (Inertial Measurement Unit), including…
N-DTC - Drag Torque Control
N-ABS – Anti-Lock Braking System
N-TEC – Tractive Effort Control
N-DCC – Dynamic Cruise Control
N-TCL – Torque Controlled Launch
N-TWC – Total Wheelie Control
N-RLC – Rear Lift Control
N-RSC - Rear Slide Control
N-VHC – Vehicle Hold Control
N-ECB – Electronic Combined Braking
COLOUR OPTIONS:
Matrix Black
Matrix Black with Carbon
Trophy Silver
Trophy Silver with Carbon
Celestial Grey
Celestial Grey with Carbon
Aqua Green
Aqua Green with Carbon
Glacier Blue
Glacier Blue with Carbon
Carbon
